PS20 / PS20 A – Electronic Patient Lift Scale

The PS20 is a professional electronic scale designed for weighing patients using a patient lift. Its compact construction and adjustable orientation rings provide a flexible solution that can be adapted to different types of patient lifts and slings.

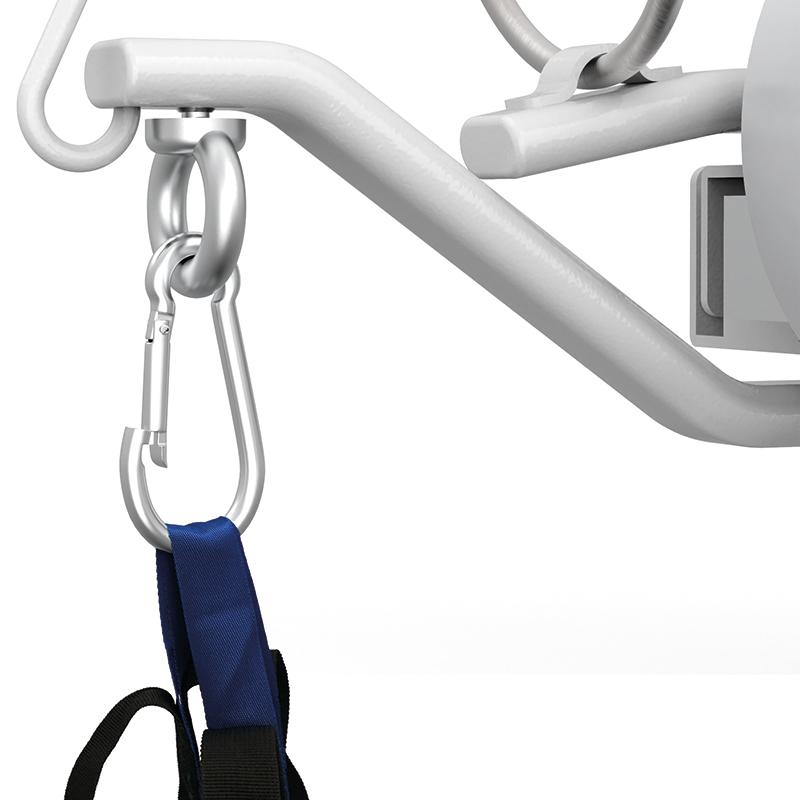

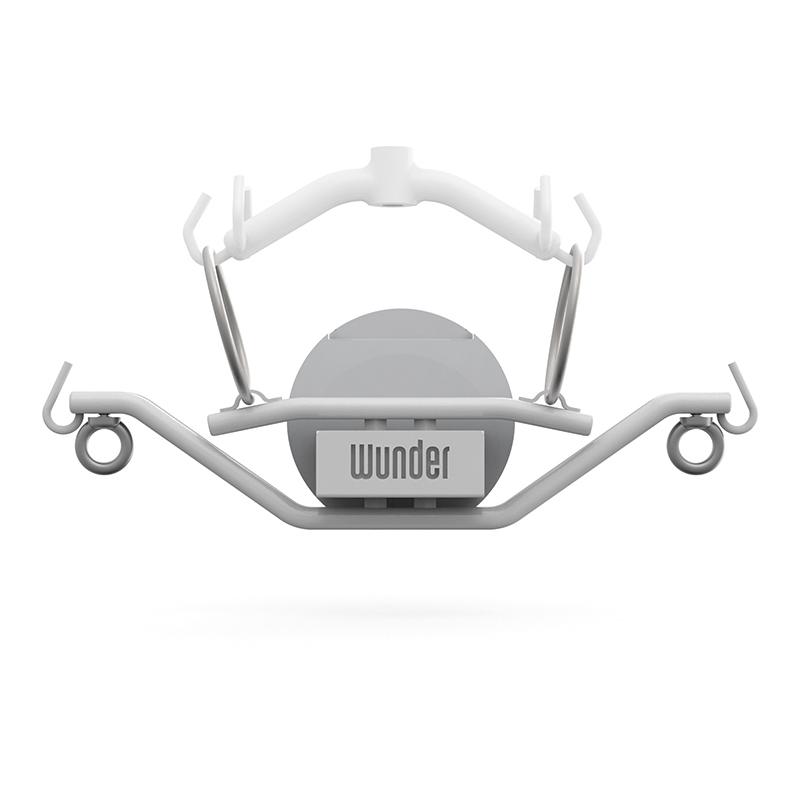

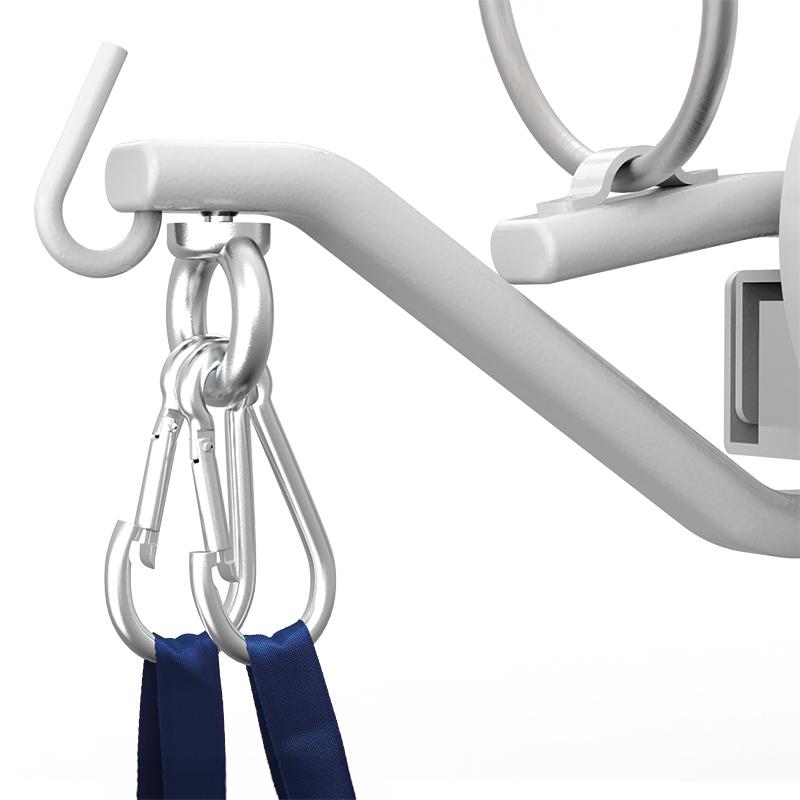

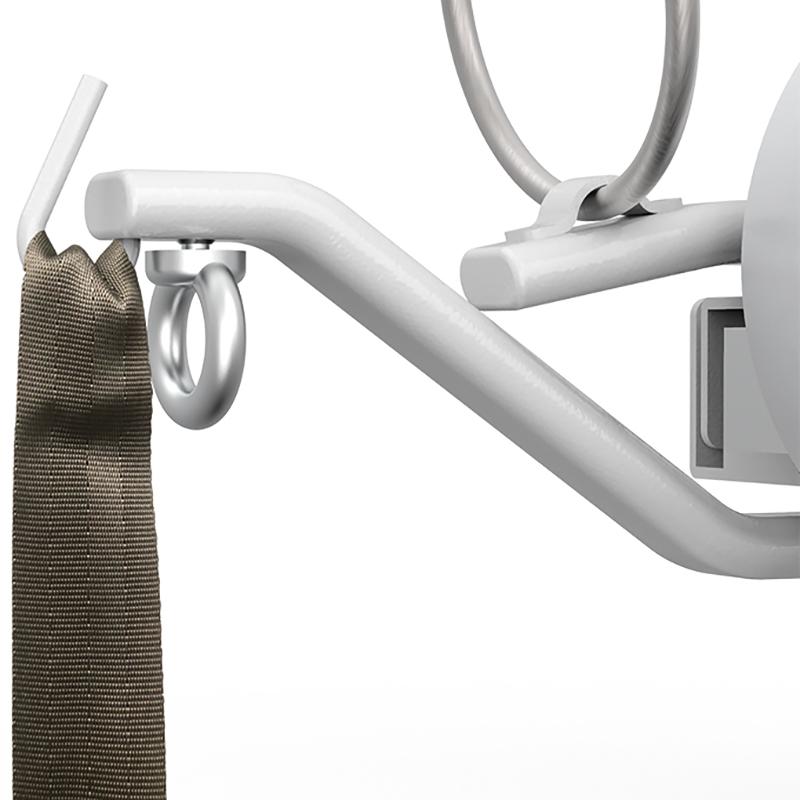

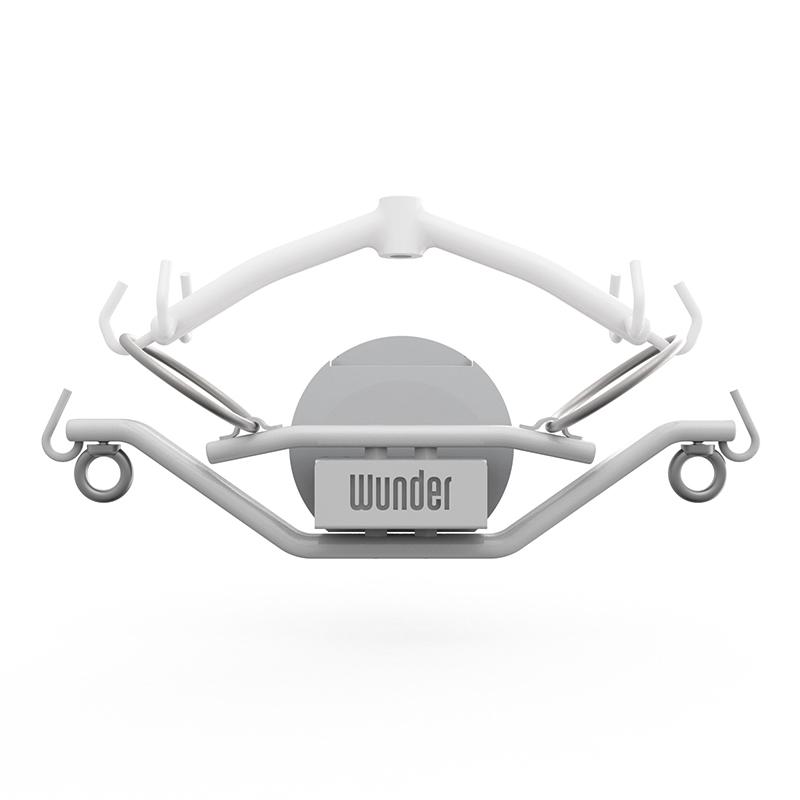

The variable opening width of 275–530 mm makes the PS20 compatible with a wide range of patient lift systems. Two versions are available: PS20 with standard hooks for simpler slings and PS20 A with four carabiners, two on each side, for slings requiring multiple attachment points.

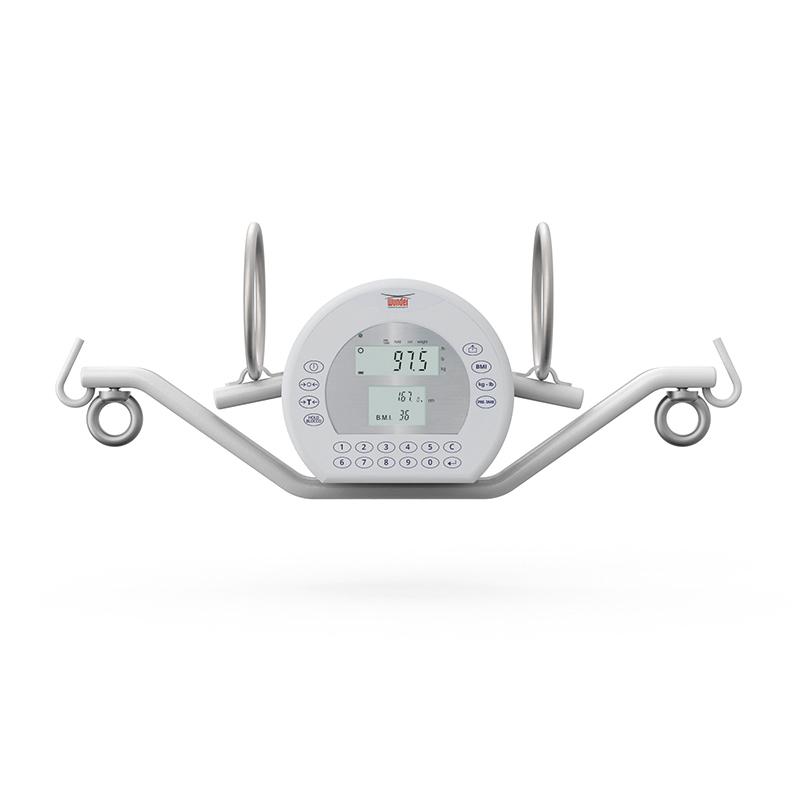

The clear display shows weight and BMI, while practical functions include tare, hold, BMI, automatic zero setting and programmable auto-off.

Both the PS20 and PS20 A have a capacity of 200 kg with a graduation of 100 g. The scale complies with accuracy class III according to EN 45501 and is a medical device according to MDR (EU) 2017/745, risk class Im with measuring function.

Optional accessories include a rechargeable battery with up to 40 hours of operating time, Bluetooth, WiFi, thermal printer and wMed Basic software.
