RL – Mobile Bed and Stretcher Scale

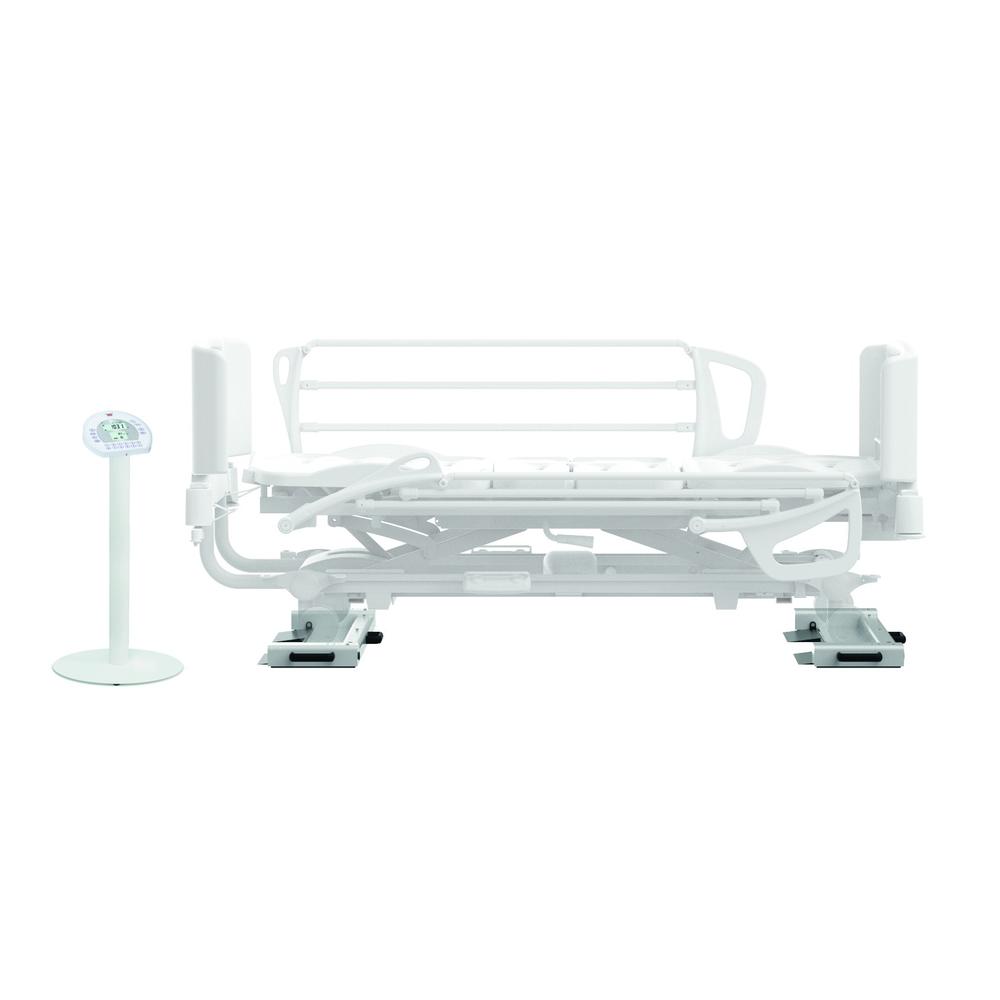

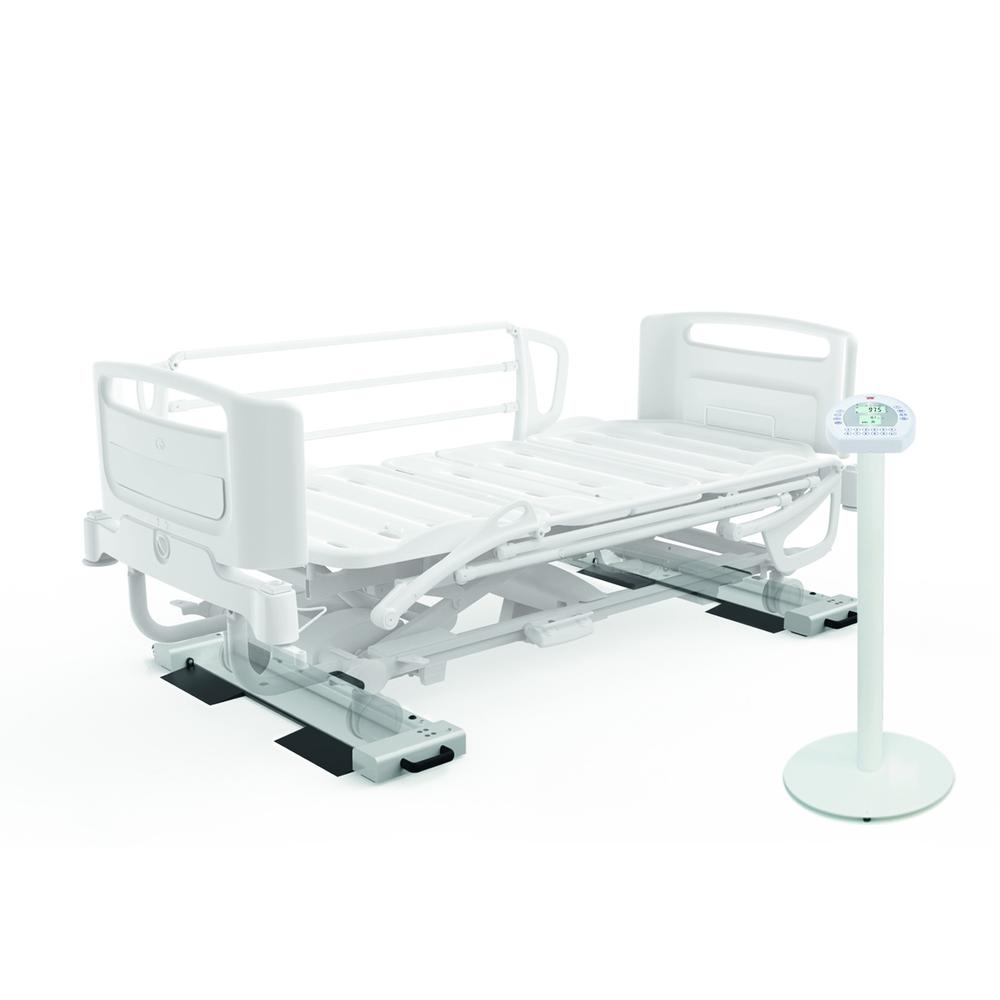

The RL is a flexible professional weighing system designed for weighing patients directly in a bed or on a stretcher. The two separate weighing ramps can be positioned at a variable distance according to the spacing between the bed or stretcher wheels, making the system suitable for a wide range of models and sizes.

Its portable design allows the scale to be moved between different departments instead of requiring a permanently installed weighing system. Integrated wheels and practical handles make transport and positioning easier. When not in use, the ramps can be folded for more convenient transport and storage.

The RL features functions including hold, BMI, automatic zero setting and checkweighing. An optional display stand with an adjustable display is available for convenient reading of the weighing results.

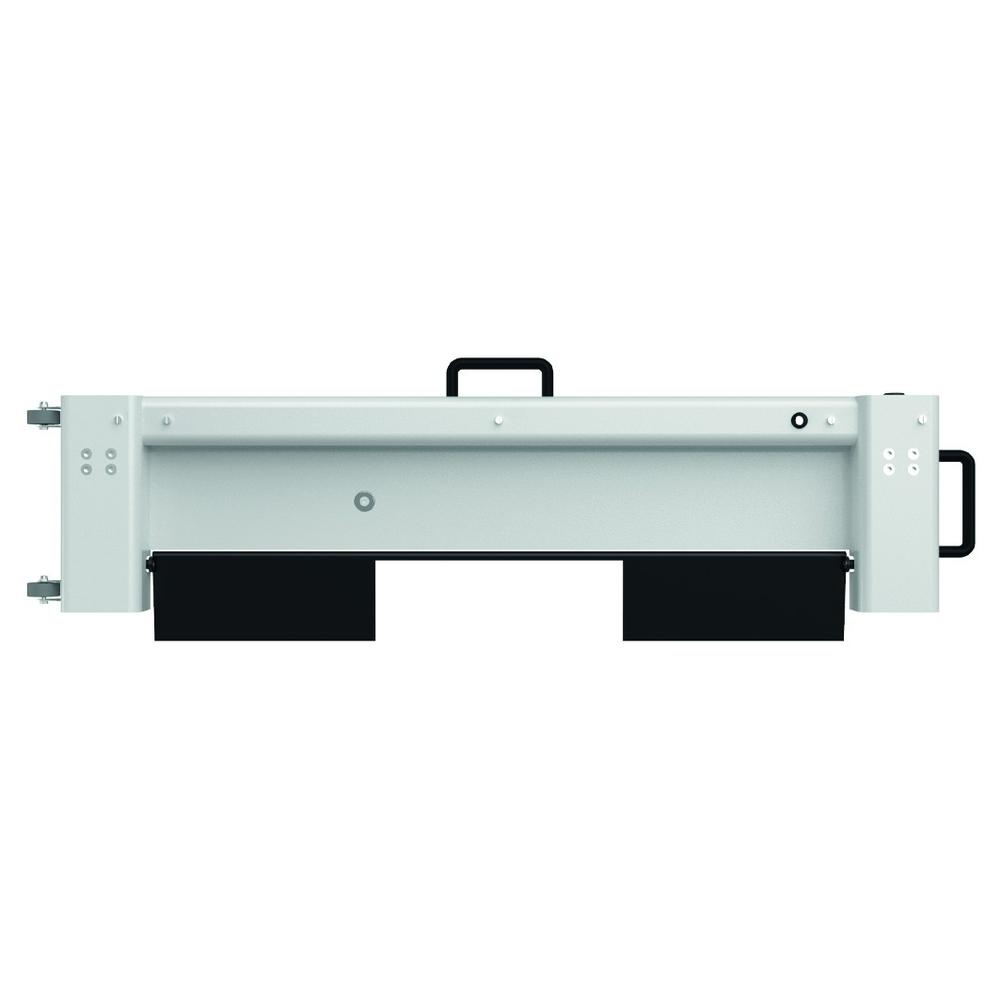

The RL is available in two versions: 300 kg with 100 g graduation or 500 kg with 200 g graduation. Each weighing ramp measures 130 × 880 mm.

The scale complies with accuracy class III according to EN 45501 and is a medical device according to MDR (EU) 2017/745, risk class Im with measuring function.

Functions

  • Battery
  • CE-approval
  • Class III
  • External adjustment
  • First time verification
  • LCD-display
  • Load sensor
  • Mains adaptor
  • MDR
  • Metal
  • Personal weighing
  • Warranty 2 year
